Facade Design Proposal for DOLCE &GABBANA , Shanghai
Academic @ Polimi- Sem-3
Involvement in Project:
Design

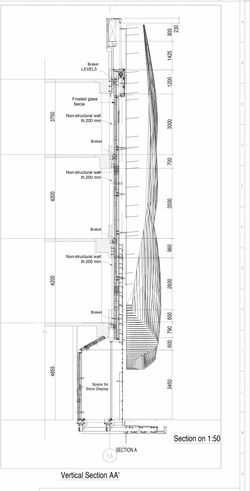

Drafting -construction details
3D views+ post processing
& Presentation
Autocad+Rhino +vray+photoshop+
In Collaboation with: Individual Project
-
The new Proposal for the Dolc gabbana tells their design philosophies in fashion.

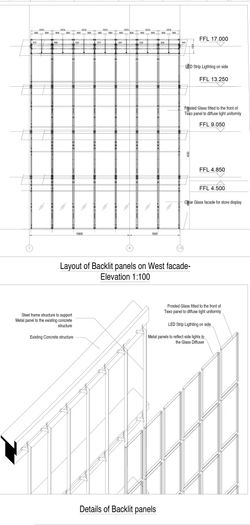

With a unique blend of Curves from a womans body + Classical Stripes + Chinese tessellations . the facade is static but visually dynamic as u move around the building , you can see the illusion of curves moving powered by the lighting panels behind the facade layer
